The non-contact profilometer for affordable 3D surface measurements
An ECONOMICAL 3D profilometer that meets a wide VARIETY OF SURFACE inspection needs.
- Short learning curve and fast setup
- Non-destructive 3D quality assurance
- Automated 3D surface metrology
- Measurement report generator
- Fast replacement for tactile systems
- ISO compliant surface roughness measurements

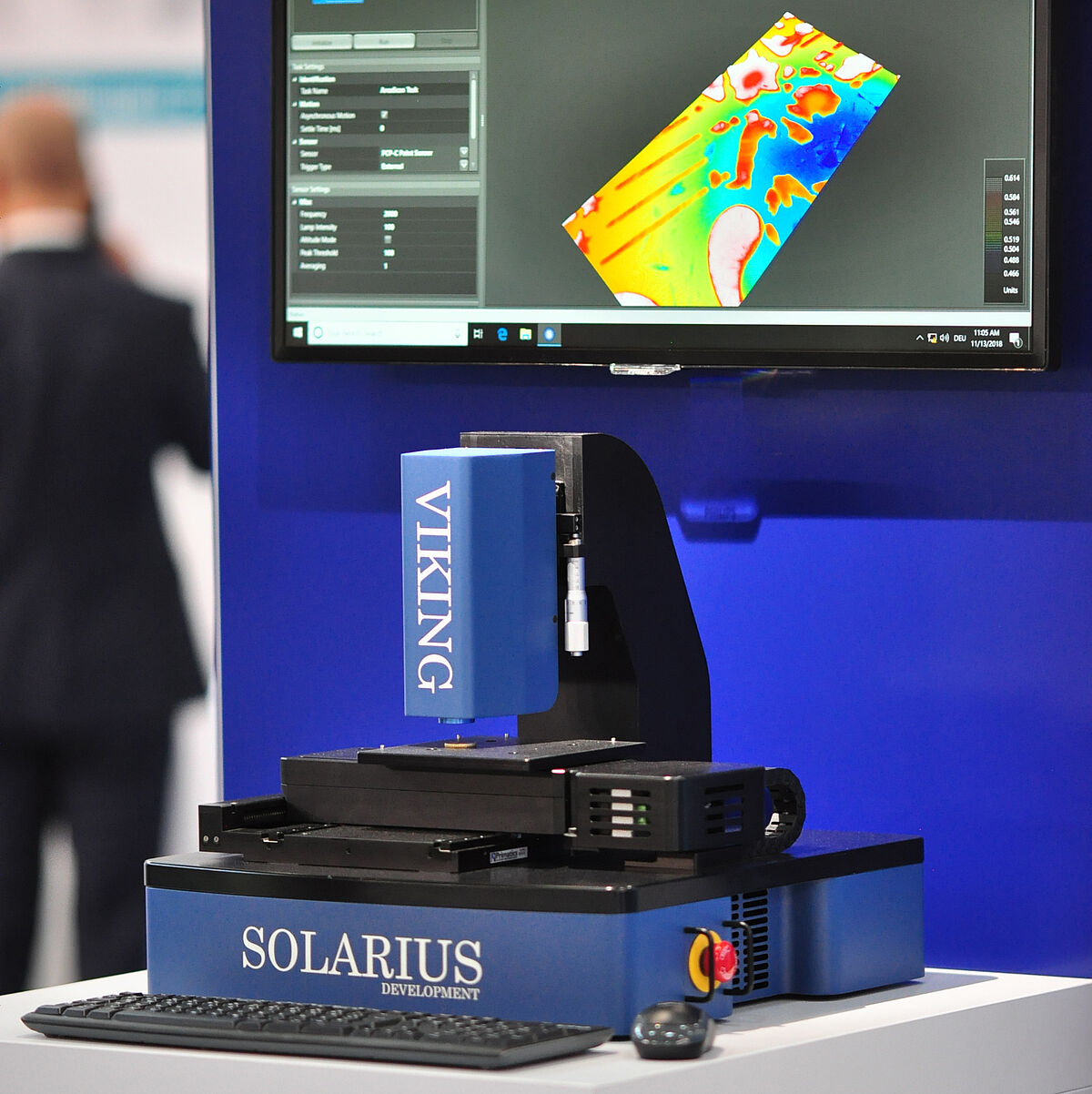

The Viking is an optical non-contact profilometer for affordable 3D surface and roughness measurements. Its small footprint and light weight design makes it ideal as a desktop 3D measurement tool. It is designed to meet mid-range accuracy and quality control needs using state- of-the-art sensor technology to generate 3D surface topography maps and ISO compliant roughness information.
Viking’s productivity benefits lie in its easy to learn user interface allowing to quickly set up 3D optical inspection procedures. New operators spend less time learning to use the system and more time making measurements with it. Once an optical inspection and analysis sequence is set up, performed and saved it can be recalled and reused at any time.
Specifications:
- Sensor Types : Chromatic confocal point sensors, Point triangulation sensors, Line triangulation sensors
- Lateral Working Range : 150 mm x 150 mm
- Vertical Working Range : 200 μm to 55 mm
- Lateral Resoultion : 1 μm up
- Vertical Resolution : 8 nm up
- Scope of Delivery :
Basis system with axes & controller
Sensor accordingly to specification
System PC, tower or notebook
Solar ScanNT software, Win10 x64
Solar Map data analysis software
