Atlas


Fast 3D Metrology for Production and Laboratory

EASE OF USE and RELIABILITY make Atlas a remarkable tool for FAST and ACCURATE surface measurement.

  • Customized recipes, easy to automate
  • Ultra fast measurements
  • Wide variety of sensor selections
  • Large lateral measurement range
  • Flexible data analysis tools

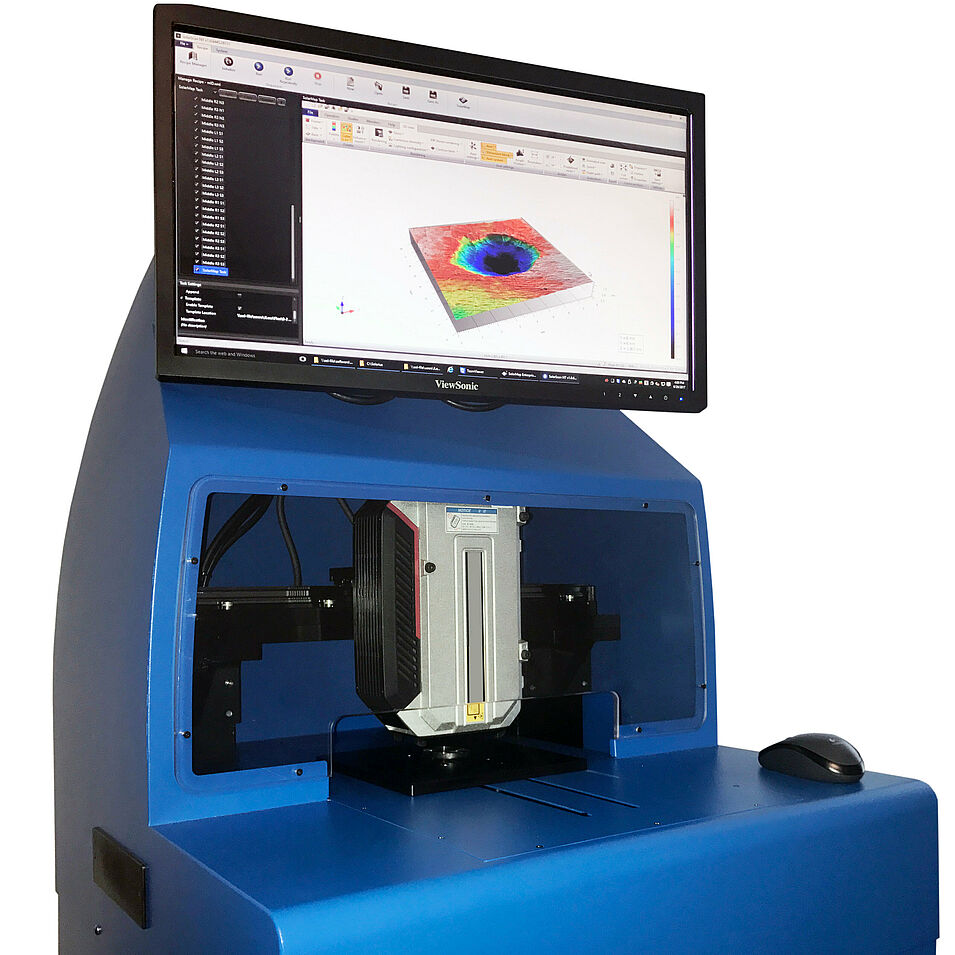

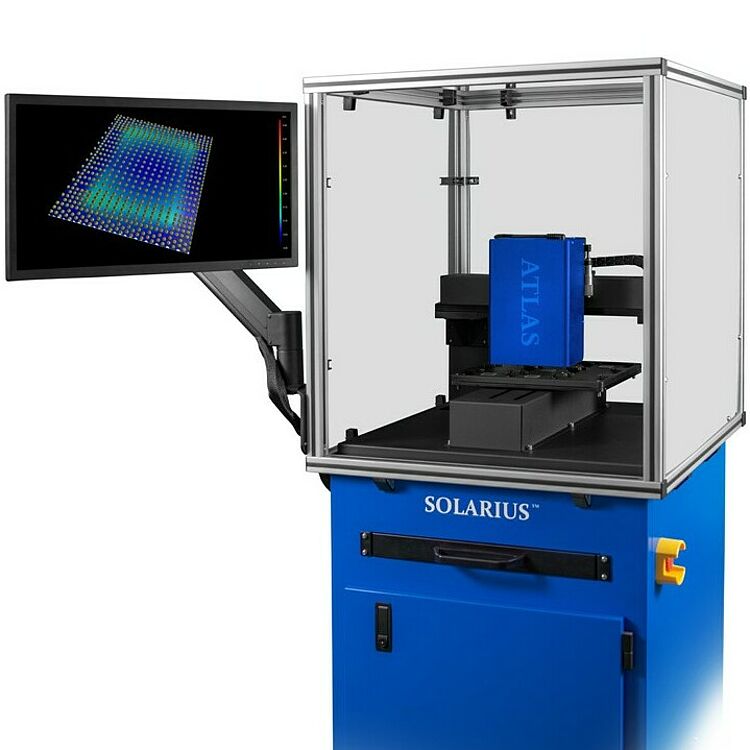

The Atlas 3D metrology tool is a modular surface measurement system for quality assurance and process control. Depending on specific needs, different types of 3D sensor technologies can be configured, making it a flexibel tool that allows accurate results at a broad variety of 3D measuring requirements, materials and geometries. Its software supports automation and efficiency in a production environment. Interferometric 3D sensors allow high speed measurements with up to 80,000 points in as few as 130 milliseconds at lateral resolutions down to 4 μm.

Using sensors with point confocal, line confocal, interferometric or line triangulation technology, its height resolution ranges from 1 nm to 200 μm. The Atlas software solution combines two software tools: a measurement recipe creation tool and a flexible analysis tool. This unique combination is ideal for applications in research and development, failure analysis and low volume semi-automated measurement.

Specifications:
  • Sensor Types : Chromatic confocal point sensors, Chromatic confocal line sensors, White light interferometric sensors, Line triangulation sensors
  • Lateral Working Range : up to 400 mm x 400 mm
  • Vertical Working Range : 100 μm to 80 mm
  • Lateral Resoultion : 1 μm up
  • Vertical Resolution : 1 nm up
  • Scope of Delivery :
    Basis system with axes & controller
    Sensor accordingly to specification
    System PC, 19" rack model
    Solar ScanNT software, Win10 x64
    Solar Map data analysis software
